ALIGA-Rapida Cooler Food

Vertical rapid action door for the refrigerated area, especially for the food industry.

The newly developed ALIGA-Cooler Food is suitable for use in fresh and cold rooms as cold as 0°C. It combines the advantages of a rapid action door with the positive properties of an insulating door.

Developed according to the requirements of DIN 1672 for “Hygienic Design”, there are many details for manufacturers to consider: from the choice of materials to the individual system components. Because all mechanical components are made of V2A stainless steel, it is resistant to cleaning agents used in the food industry.

The insulated curtain ensures that less cold air escapes from the cooling areas. Thereby energy costs can be reduced sustainably.

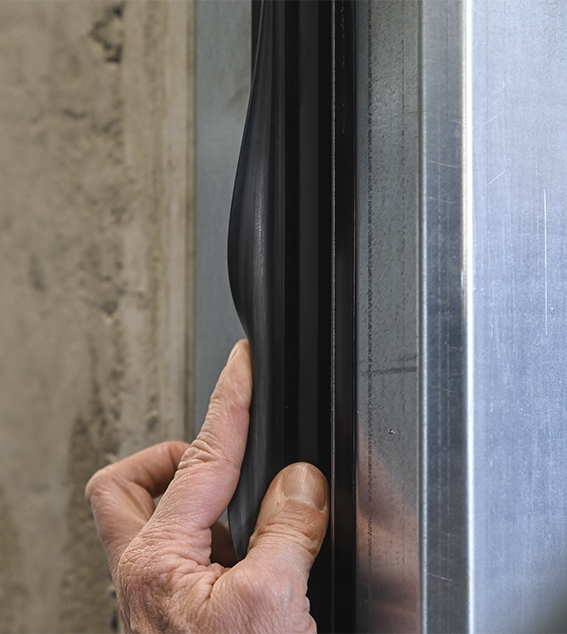

Die Dichtung der ALIGA-Cooler-Serie im Detail — Three-layer insulated and sealed all round

Product Details Suitable for indoor use Standard size up to 5500 x 5500 mm (clear width x clear height) Further dimensions possible on request Opening speed: Adjustable up to approx. 2.5 m/s Closing speed: Approx. 1.5 m/s

Construction Mechanical components made of V2A stainless steel Tension spring or counterweight integrated in the side panels Motor and shaft cover included Anti-Crash System Emergency opening function according to ASR 1.7 possible

Curtain HochisolieHighly insulating, specially manufactured foam core Three-layer insulated and sealed all round Door curtain made of tear-resistant PES fabric (thermoplastically high-performance plastic) Wind resistance class according to EN 12424: Class 0-2 possible 9 standard colors as well as customer-specific color selection or printing possible

Standard RAL-Farben ALiGA-Rapida Scnelllauftore — There are many standard colors to choose from for the ALIGA Rapida door series: green, yellow, orange, red, blue and 4 different shades of gray.

Safety Devices / Electrical Equipment Frequency converter door control with digital display Safety light grids according to DIN EN 13241-1 for closing edge protection All common command devices can be combined Forefield monitoring possible
