The first choice when it comes to
rapid action doors in escape routes!

Our interior door ALIGA-Escape has passed the type test of the PFB - test center for construction elements - and is therefore approved as a tested construction product for use in escape and rescue routes.

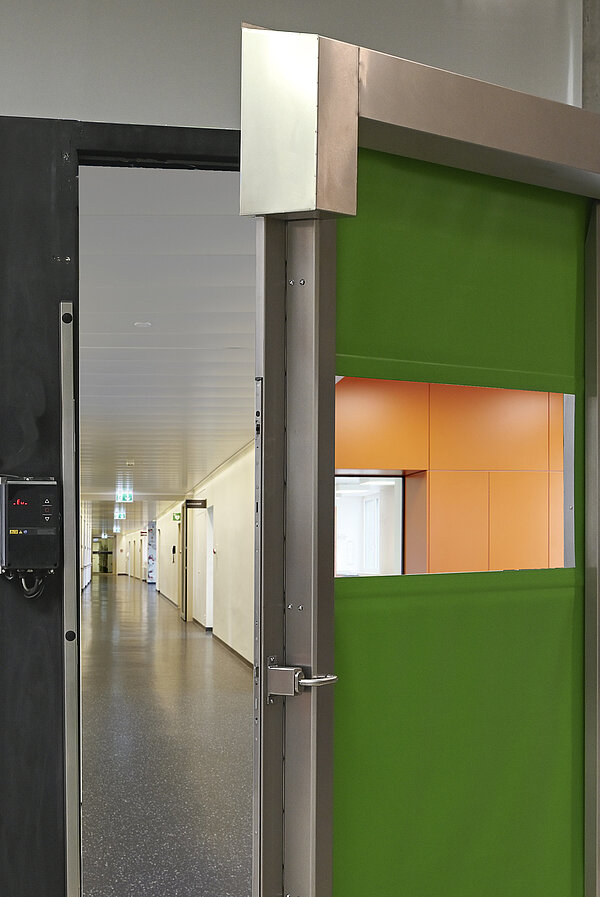

As a revolving door with an integrated high-speed door, the ALIGA-Escape is the solution for all production environments with escape routes or as a separation from escape routes, e.g. B. as an emergency exit, indoors.
The system works normally like a high-speed door and can be opened in an emergency or in the event of a power failure like an ordinary door in the direction of escape.
In everyday use, the flexible curtain of the door leaf opens automatically at a speed of up to 2.5 m / s, thus enabling quick transfer of personnel and goods.
The door leaf closes automatically at up to 1.5 m / s after a defined hold-open time.
In contrast to other high-speed doors on the market, the ALIGA-Escape with approval as a regulated building product according to the LBO can be operated as an escape door in escape routes.
In addition, the ALIGA Escape is tested and certified according to DIN EN 179 and thus fulfills all the necessary requirements for reliable operation in emergencies or failures.
The door type ALIGA-Escape Food is new, which takes into account the special requirements of the food industry for industrial doors. In this version, the door is made entirely of V2A stainless steel and resists the cleaning agents used in the food industry.



Suitable for indoor use Standard size up to 2500 x 2500 mm (clear width x clear height) Further dimensions possible on request Opening speed: Adjustable up to approx. 2.5 m/s Closing speed: Approx. 1.5 m/s
Torbehang aus reißfesten PES-Gewebe in 9 Standardfarben Kundenindividuelle Farbwahl bzw. Bedruckung Fenster aus transparentem PVC oder volltransparenter Behang lieferbar Windhaltelast gemäß EN 12424: Klasse 0-2 möglich
Door curtain made of tear-resistant PES fabric (thermoplastically high-performance plastic) Customer-specific color selection or printing possible DIN stop optionally on the right or left.
Electric drive with frequency converter and emergency stop button OPEN – STOP – CLOSE membrane keypad Closing edge protection by light grid over the entire opening height
ALIGA-Escape – Downloads
